Log Chop Toy By Kilian Johnson - Game Design Student at Sheridan College
This program is meant to test ones reflexes with a fun game where the play needs
to press the space bar when the log passes through the middle of the screen to
successfully chop it in half. Be careful though, they get faster each time!
*/
void setup() {
size(400, 400);
rectMode(CENTER);
}
//Declaring Variables
float logSpeed=1;
float logY=height*2;
float logX=-130;
int score=0;
int highScore=0;
float scoreColor1=random(150,255);
float scoreColor2=random(150,255);
float scoreColor3=random(150,255);
void draw() {
//Set the background color
drawBackGround();
//Draw Trees Across the Backdrop
drawTrees();
//Reset frame rate back to normal
frameRate(60);
//Turn on Antialiasing
smooth();
//Log moving from one side to the other
drawLog();
//Axe for chopping the log
drawAxe();
//Display score
drawScore();
//Display High Score
drawHighScore();
//Display the Instructions
drawInstructions();
}
void drawBackGround() {
background(72, 103, 36);
noStroke();
fill(120, 205, 225);
quad(0, 100, 400, 100, 400, 280, 0, 280);
stroke(252,185,40);
strokeWeight(3);
line(200,262,200,280);
line(200,262,205,267);
line(195,267,200,262);
}
void drawTrees() {
for (float i=20; i<400; i=i+60) {
noStroke();
fill(100, 50, 0);
beginShape();
vertex(i-5, 30);
vertex(i-5, 70);
vertex(i-20, 90);
vertex(i-5, 85);
vertex(i-5, 100);
vertex(i+5, 85);
vertex(i+20, 100);
vertex(i+15, 85);
vertex(i+30, 85);
vertex(i+10, 70);
vertex(i+10, 30);
endShape();
fill(118, 161, 53);
noStroke();
ellipse(i, 20, 20, 20);
ellipse(i+10, 25, 20, 20);
ellipse(i+15, 30, 20, 20);
ellipse(i+10, 35, 20, 20);
ellipse(i+5, 40, 20, 20);
ellipse(i, 40, 20, 20);
ellipse(i-5, 35, 20, 20);
ellipse(i-10, 30, 20, 20);
ellipse(i-5, 25, 20, 20);
}
}
void drawLog() {
//Draw the log
//Core piece
fill(100, 50, 0);
ellipse(logX-95, logY, 60, 99);
noStroke();
rect(logX, logY, 200, 100);
stroke(1);
ellipse(logX+95, logY, 60, 99);
ellipse(logX+95, logY, 40, 80);
ellipse(logX+95, logY, 25, 60);
ellipse(logX+95, logY, 15, 35);
fill(0);
ellipse(logX+95, logY, 5, 10);
strokeWeight(3);
stroke(252,185,40);
line(logX-50,logY-60,logX-50,logY+48);
line(logX+50,logY-48,logX+50,logY+48);
strokeWeight(1);
stroke(0);
//Wood lines
strokeWeight(3);
line(logX-85, logY-40, logX-70, logY-40);
line(logX+50, logY+25, logX+65, logY+25);
line(logX+10, logY+20, logX+35, logY+20);
line(logX-60, logY+10, logX-70, logY+10);
line(logX-50, logY+45, logX-30, logY+45);
line(logX+40, logY-30, logX+60, logY-30);
line(logX+5, logY-5, logX+20, logY-5);
line(logX-45, logY-20, logX-25, logY-20);
strokeWeight(1);
//Branch
fill(100, 50, 0);
noStroke();
quad(logX-75, logY-60, logX-35, logY-60, logX-10, logY-40, logX-50, logY-40);
stroke(1);
line(logX-75, logY-60, logX-50, logY-40);
line(logX-35, logY-60, logX-10, logY-40);
ellipse(logX-55, logY-60, 40, 15);
fill(0);
ellipse(logX-55, logY-60, 10, 5);
fill(255);
//Move log across the screen
logX += logSpeed;
//When log gets to the end, bring it back to the start
if (logX>530) {
logX=-130;
}
}

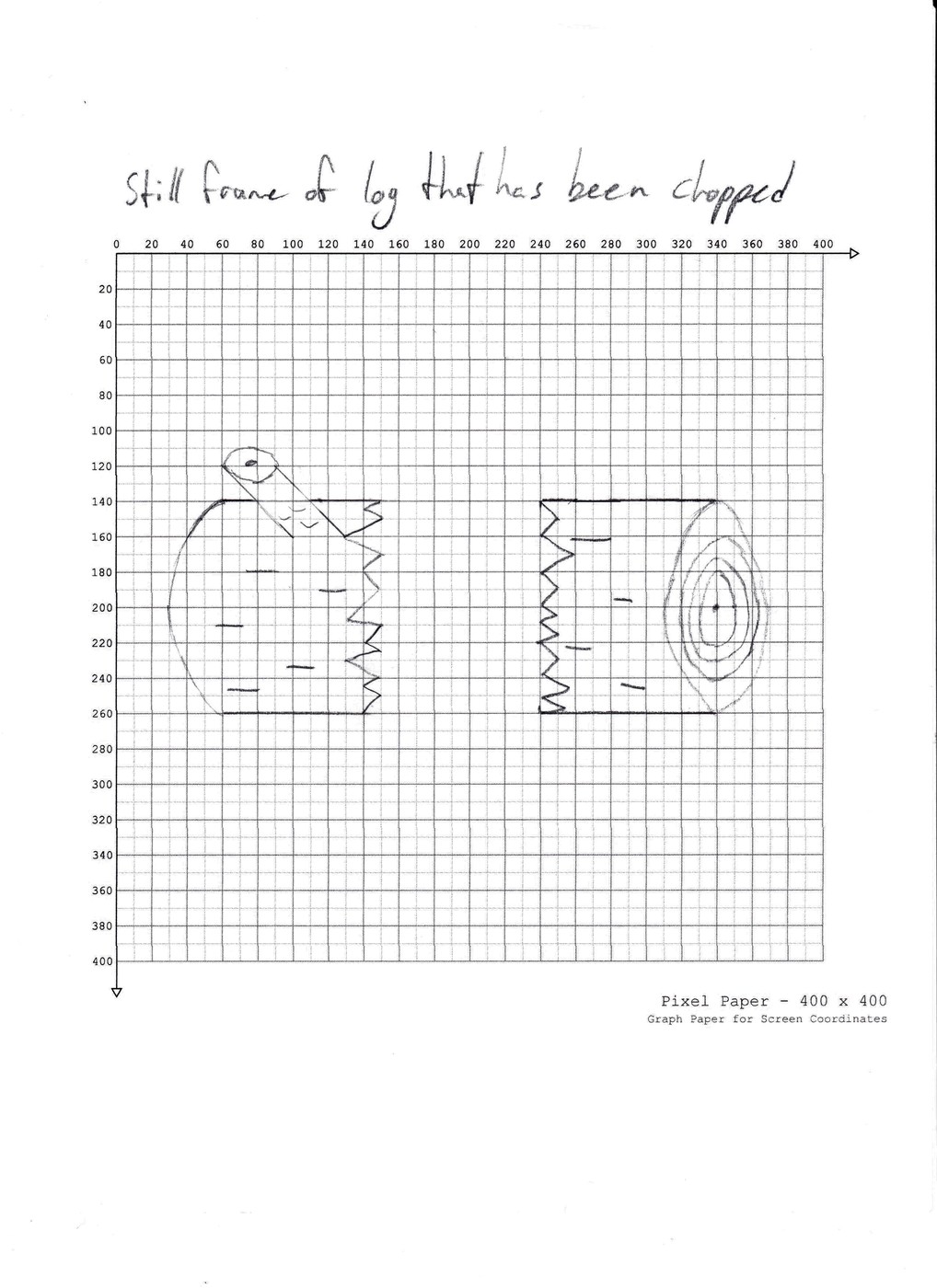

void drawLogChopped() {
//Change frame rate to let image persist
frameRate(1);
//Right side of log
fill(100, 50, 0);
noStroke();
rect(300, 200, 100, 120);
fill(120, 205, 225);
triangle(250, 140, 260, 150, 250, 160);
triangle(250, 160, 270, 170, 250, 180);
triangle(250, 180, 260, 190, 250, 200);
triangle(250, 200, 260, 205, 250, 210);
triangle(250, 210, 260, 215, 250, 220);
triangle(250, 220, 265, 230, 250, 235);
triangle(250, 235, 270, 240, 250, 245);
triangle(250, 245, 260, 250, 250, 255);
triangle(250, 255, 260, 257, 250, 260);
fill(100, 50, 0);
stroke(1);
ellipse(350, 200, 60, 120);
ellipse(350, 200, 50, 99);
ellipse(350, 200, 40, 80);
ellipse(350, 200, 25, 60);
ellipse(350, 200, 15, 35);
fill(0);
ellipse(350, 200, 5, 10);
strokeWeight(3);
line(270, 160, 300, 160);
line(300, 190, 310, 190);
line(280, 225, 295, 225);
line(310, 250, 320, 250);
//Left side of log
fill(100, 50, 0);
noStroke();
ellipse(55, 200, 60, 120);
rect(100, 200, 100, 120);
fill(120, 205, 225);
triangle(150, 140, 140, 145, 150, 150);
triangle(150, 150, 130, 160, 150, 170);
triangle(150, 170, 140, 180, 150, 190);
triangle(150, 190, 130, 207, 150, 210);
triangle(150, 210, 140, 220, 150, 225);
triangle(150, 225, 130, 230, 150, 240);
triangle(150, 240, 140, 245, 150, 250);
triangle(150, 250, 140, 260, 150, 260);
stroke(1);
strokeWeight(3);
line(60, 150, 80, 150);
line(80, 180, 90, 180);
line(115, 195, 125, 195);
line(95, 235, 120, 235);
line(65, 245, 80, 245);
fill(100, 50, 0);
noStroke();
quad(50, 120, 90, 120, 130, 160, 90, 160);
stroke(1);
strokeWeight(1);
line(50, 120, 90, 160);
line(90, 120, 130, 160);
ellipse(70, 120, 40, 15);
fill(0);
ellipse(70, 120, 10, 5);
}

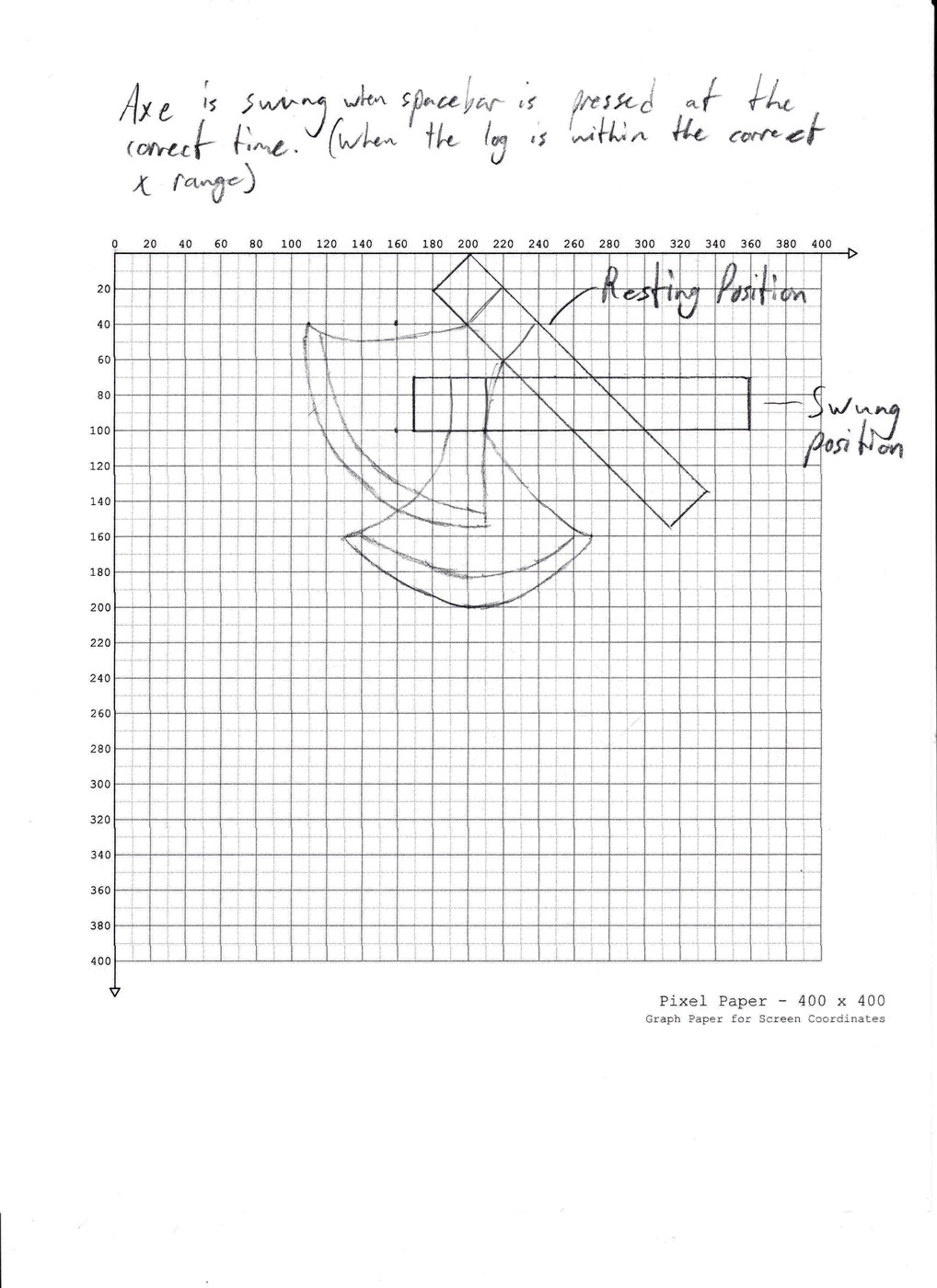

void drawAxe() {
//Axe Head
stroke(0);
fill(219, 228, 238);
arc(220, 40, 205, 213, PI/2, PI);
line(220, 60, 220, 145);
line(117, 40, 200, 40);
//Axe Handle
fill(122, 102, 93);
quad(180, 20, 200, 0, 335, 130, 315, 155);
fill(219, 228, 238);
quad(200, 40, 220, 20, 240, 40, 220, 60);
fill(255);
}
void drawSwungAxe() {
//Axe Head
stroke(0);
fill(219, 228, 238);
triangle(130, 160, 200, 80, 270, 160);
arc(200, 160, 140, 50, 0, PI);
//Axe Handle
fill(122, 102, 93);
quad(170, 70, 360, 70, 360, 100, 170, 100);
fill(219, 228, 238);
quad(183, 70, 217, 70, 217, 100, 183, 100);
fill(255);
}
void drawScore() {
fill(scoreColor1, scoreColor2, scoreColor3);
textSize(30);
text("Score:" + score, 10, 380);
}
void drawHighScore() {
fill(scoreColor1, scoreColor2, scoreColor3);
textSize(30);
text("High Score:" + highScore, 180, 380);
}
void drawInstructions() {
fill(scoreColor1, scoreColor2, scoreColor3);
textSize(30);
text("Spacebar to Chop!",65,320);
}
void keyPressed() {
/*When spacebar is pressed while log is in the middle of the screen,
increase speed of log and increase score.
If spacebar is pressed while log is not in the middle of the screen,
reset score to 0 and reset log speed to original
*/
if (key == ' ') {
if (logX>150&&logX<250) {
logSpeed+=2;
score=score+1;
logX=-130;
drawBackGround();
drawTrees();
drawLogChopped();
drawSwungAxe();
drawScore();
drawHighScore();
drawInstructions();
//Keep track of high score
if (score>highScore) {
highScore=score;
}
} else {
logX=-130;
logSpeed=1;
score=0;
}
}
}
