By Adriana Matic
October 20 2016

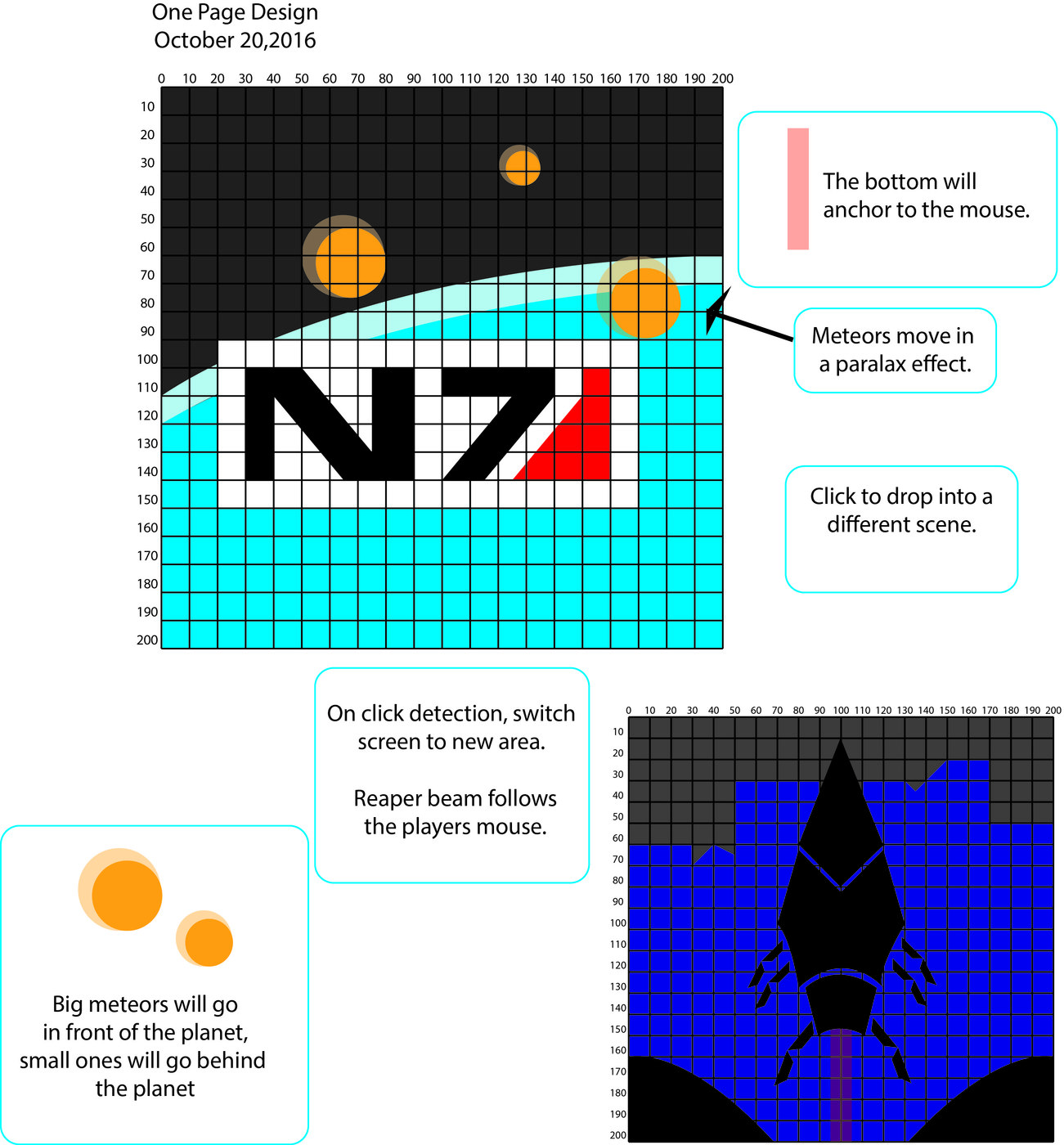

Mass Effect Experience!
See the reapers invade Earth!
Click to zoom into the atmosphere and get a ground view!
*****************************************************************/
//Variables
int allTheMeteors = 4;
int smallMeteor = 5;
int colour = 0;
float clickTest= 0;
//reaper class
Reaper reaperScene;
Reaper reaperUpdate;
//Arrays
Meteor[] meteor = new Meteor[allTheMeteors];
Meteor[] meteors = new Meteor[smallMeteor];
/*****************************************************************
Call update with classes
*****************************************************************/
void makeMeteors() {
for (int m = 0; m < meteor.length; m++) {
meteor[m] = new Meteor(random(0, 350), random(0, 300), random(0.05, 0.5), 0.5);
}
}
void makeSmallMeteors() {
for (int m = 0; m < meteors.length; m++) {
meteors[m] = new Meteor(random(0, 350), random(0, 300), random(0.01, 0.05), 0.5);
}
}
/*****************************************************************
Setup
call classes
*****************************************************************/
void setup() {
fill(0);
size(400, 400);
makeMeteors();
makeSmallMeteors();
reaperScene = new Reaper();
reaperUpdate = new Reaper();
}
/*****************************************************************
Initate all the things
*****************************************************************/
void draw() {
background(0);
//make small meteors and have them fall
//Stay behind the planet
for (int m = 0; m<meteors.length; m++) {
meteors[m].makeSmallMeteors();
}
for (int m = 0; m<meteors.length; m++) {
meteors[m].updateMove();
}
earth();
//make big meteors and have them fall
for (int m = 0; m<meteor.length; m++) {
meteor[m].makeMeteors();
}
//initate the meteors moving
for (int m = 0; m<meteor.length; m++) {
meteor[m].updateMove();
}
n7();
/*****************************************************************
Reaper Phase
*****************************************************************/
if (clickTest>=1) {
//stop meteors and blank out
background(192, 212, 214);
//initiate reaper
reaperScene.drawReaper();
reaperUpdate.update();
}
}
/*****************************************************************
Earth
*****************************************************************/
void earth() {
fill(170, 247, 255, 50);
ellipse(400, 400, 1000, 600);
fill(92, 192, 216);
ellipse(400, 400, 900, 500);
}
/*****************************************************************
N7 Symbol
*****************************************************************/
void n7() {
//n7 symbol
noStroke();
fill(225, 255, 255, 220);
rect(40, 180, 300, 120);
fill(0);
//N
rect(65, 200, 20, 80);
rect(80, 200, 20, 20);
rect(143, 260, 20, 20);
rect(143, 200, 20, 80);
triangle(100, 200, 80, 210, 120, 225);
triangle(80, 210, 120, 260, 120, 225);
triangle(120, 225, 120, 260, 144, 260);
triangle(120, 260, 135, 280, 144, 260);
triangle(135, 280, 143, 260, 144, 280);
//7
rect(183, 200, 98, 20);
triangle(243, 220, 280, 220, 248, 260);
triangle(243, 220, 200, 280, 248, 260);
triangle(248, 260, 200, 280, 233, 280);
//red bit
fill(255, 0, 0);
rect(295, 200, 20, 80);
triangle(295, 220, 250, 280, 295, 280);
}
void mouseClicked() {
colour += 0.02;
print("click");
clickTest+=1;
}class Meteor {
PVector position = new PVector();
PVector velocity = new PVector();
// float[] meteorTrailX = new float[3];
//float[] meteorTrailY = new float[3];
// position and velocity set for meteors
Meteor(float x, float y, float velocityX, float velocityY) {
position.x = x;
position.y = y;
velocity.x = velocityX;
velocity.y = velocityY;
}
void makeMeteors() {
//make the meteors
fill(245, 114, 32, 50);
ellipse(position.x, position.y, 100, 100);
fill(216, 198, 92);
ellipse(position.x, position.y, 80, 80);
triangle(position.x, position.y, position.x+20, position.y +10, position.x - 20, position.y - 10);
}
void makeSmallMeteors() {
//make small meteors
fill(245, 114, 32, 50);
ellipse(position.x, position.y, 40, 40);
fill(216, 198, 92);
ellipse(position.x, position.y, 20, 20);
}
void updateMove() {
//move the meteors
position.add(velocity);
//reset position of the meteors after they fall off screen
if (position.x > width+50) {
position.x = 0;
position.y = 0;
}
//print(velocity);
}
}class Reaper {
void drawReaper() {
//buildings
fill(47, 65, 67);
noStroke();
rect(0, 120, 60, 400);
rect(60, 160, 60, 400);
triangle(40, 160, 80, 120, 120, 160);
rect(100, 60, 80, 400);
rect(220, 80, 40, 400);
rect(260,100,20,400);
triangle(260, 80, 260, 100, 280, 100);
rect(280, 100, 60, 400);
rect(320, 40, 20, 400);
triangle(260, 100, 320, 40, 320, 100);
rect(340, 120, 60, 400);
rect(180,100,40,400);
//rubble
fill(0);
ellipse(0,400,175,150);
ellipse(400,400,175,150);
fill(122,165,232,50);
ellipse(200,400,400,200);
fill(191,211,242,50);
ellipse(200,400,800,200);

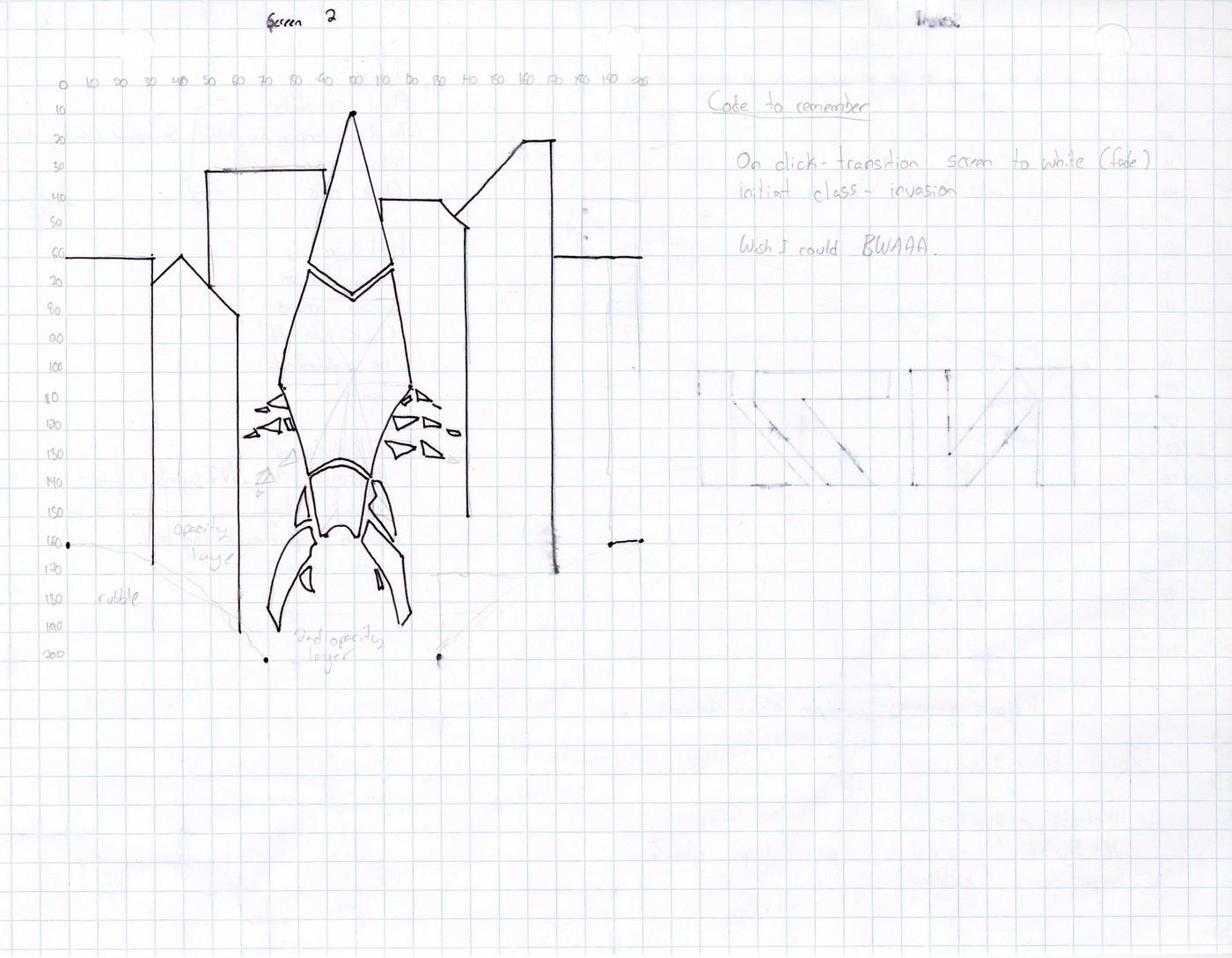

//reaper
fill(0);
stroke(0);
//upper tail
triangle(200,20,170,125,200,145);
triangle(200,20,225,125,200,145);
//body
triangle(170,125,230,160,160,160);
triangle(225,125,230,160,200,145);
rect(160,160,65,80);
triangle(160,160,150,210,160,240);
triangle(225,130,220,240,240,230);
triangle(160,240,220,240,195,260);
triangle(160,240,165,270,195,260);
triangle(230,270,239,225,195,260);
//head
triangle(170,280,195,265,225,280);
rect(170,280,55,20);
triangle(180,300,180,310,195,300);
triangle(170,300,225,300,200,310);
//legs
rect(120,220,40,10);
//triangle(120,220,100,230,120,230);
rect(125,240,40,10);
rect(225,220,50,10);
//triangle(225,220,245,230,225,220);
rect(230,240,40,10);
triangle(170,310,175,320,150,340);
triangle(220,310,215,320,230,340);
}
void update(){
loop();
noStroke();
//beam
fill(237,0,0,100);
triangle(180,310, 215,310, mouseX,mouseY);
}
}
